Welcome to the website guide of the Eket V2 build video guide.
With two separate chambers this build can do continuous supply in a very small package.

This guide is done with a small and a big eket, but you could do it with two large ones to allow longer vegging, in this case you can do the second eket for vegging with just 2 panels instead of 4.

The normal power usage for this build is below 50w total, which means less than $5/month for veg (4) and $3/month in bloom (3).

The new cardboard compression chamber of the blower allows for a quieter build and makes the carbon filter setup much simpler.

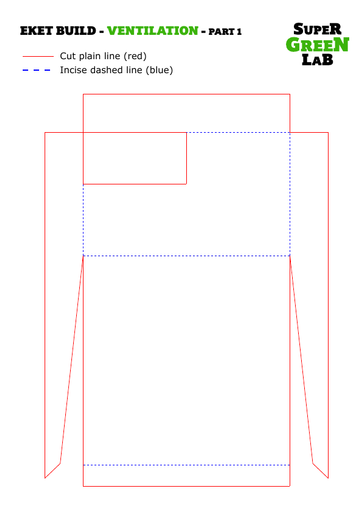

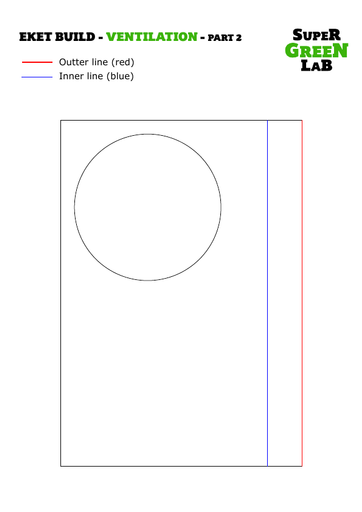

(The attachements below are also downloadable throughout the guide)

Attachements

What you'll need

Selected region:
World
Click to change

Eket cabinet BY ikea

From ikea.co.uk

Small and stealthy - 1 plant wonder box!

Cabinet with door and shelf, white13 3/4x13 3/4x27 1/2 "

US$42.41

*price may vary *converted to local currency

US$42.41

*price may vary *converted to local currency

Small eket BY ikea

From ikea.de

Perfect for a seedling/veg box

Simple plain white cabinet ideal for 1 plant stealth grow 👌
Dimensions: 13 3/4x13 3/4x13 3/4 " / 35

US$25.44

*price may vary *converted to local currency

US$25.44

*price may vary *converted to local currency

13Pc Cordless Drill Driver 18V/20V-Max BY Terratek

From amazon.co.uk

Making holes in stuff

The Terratek 18V/20V Lithium-Ion Cordless Drill Set is supplied with a powerful Li-ion battery which

US$53.31

*price may vary *converted to local currency

US$53.31

*price may vary *converted to local currency

DWA1184 14Piece Drill Bit Set BY DEWALT

From amazon.de

Drilling 10mm holes has never been easier

The DEWALT Black & Gold Metal Drill Bits feature a black and gold coating for preventing rust. The t

US$8.67

*price may vary *converted to local currency

US$8.67

*price may vary *converted to local currency

Ninja Grow Bundle BY SuperGreenTomato

From SuperGreenTomato EU

6 LED PANELS TO ADAPT IN ANY SPACE 🤯

Back in stock 😛 !



🌍 WORLDWIDE SHIPPING 🌎

Welcome to the best hobby ever!

We

US$228.24

*converted to local currency

HP DeskJet Plus 4120 All-in-One Printer BY HP

From amazon.co.uk

You know, to print stuff :)

All the features. All the value. Print, scan, and copy everyday documents, and get a 35-page automat

US$72.69

*price may vary *converted to local currency

US$72.69

*price may vary *converted to local currency

A4 Multipurpose Copy Printer Paper BY Amazon Basics

From amazon.co.uk

The most commonly available paper size worldwide.

500 sheets of A4 paper for all your printing and drawing needs.

US$8.97

*price may vary *converted to local currency

US$8.97

*price may vary *converted to local currency

Blue Spot Soft Grip Precision Knife Set BY Blue Spot

From amazon.co.uk

Make precise cuts; avoid your fingers

Great Tool For Trimming, Deburring Chiseling, Carving, Cutting and Other Hobby Craftwork;Hardened St

US$8.07

*price may vary *converted to local currency

US$8.07

*price may vary *converted to local currency

Aluminium Tape BY Brackit

From amazon.co.uk

SGL's favorite tape!

  • Self-adhesive aluminium foil – 60 m conductive aluminium foil can be used in many ways in everyda

US$9.63

*price may vary *converted to local currency

US$9.63

*price may vary *converted to local currency

Scie cloche BY Wolfcraft

From amazon.fr

"A really big f*cking hole coming right up"

Easiest way to make large holes for ventilation.

US$5.73

*price may vary *converted to local currency

US$5.73

*price may vary *converted to local currency

#2 HB Pencil BY Amazon Basics

From amazon.co.uk

HB, 2b, LGBT, we love all pencils ✏

#2 HB pencils made from high-quality wood come presharpened

US$5.20

*price may vary *converted to local currency

US$5.20

*price may vary *converted to local currency

12 inch plastic ruler BY eboot

From amazon.com

The tool to measure and draw straight lines

  • Wide application: a useful measuring tool for artists, designers, architects, engineers, students

US$5.99

*price may vary

Hot Glue Gun BY TACKlife

From amazon.fr

So anyway, I started blasting

Hot Melt Glue Gun is a tool for sticking Package That Can Be Used Easily,
Don't just come hobbies DI

US$13.24

*price may vary *converted to local currency

US$13.24

*price may vary *converted to local currency

3M 9019 General Purpose Sandpaper Sheets BY 3M

From amazon.com

Roughing up a surface for better adhesiveness

3M™ General Purpose Sandpaper comes in a variety of minerals and a wide grit range. Ideal for painte

US$3.17

*price may vary

3-in-1 Air Filter Replacement BY Nispira

From amazon.com

Simple and efficient

  • Premium 3-in-1 air filter replacement set compatible with Vornado Air Purifier CYLO50, CYLO51, and

US$13.99

*price may vary

Blower & Sensor Combo BY SuperGreenTomato

From SuperGreenTomato EU

Expand your grow with another chamber

Looking to expand your grow?

An extra chamber allows you to do a perpetual harvest by having plants

US$37.12

*converted to local currency

Don't destroy the cardboard!

Done
logo-supergreenlab

Don't destroy the cardboard!

Done

We know how satisfying it is to tear open boxes but you’ll need the cardboard from both boxes for the build so take a deep breath and open them properly.

Got a feedback/suggestion? click here

Ready, get set, build!

Done
logo-supergreenlab

Ready, get set, build!

Done

Read the manual and follow the instructions; you got this!
See you at the next step for some drilling :)

Got a feedback/suggestion? click here

Drill 2 cable management holes

Done
logo-supergreenlab

Drill 2 cable management holes

Done

Make two large holes with the drill on the back side in both top corners.
It's simpler to take care of the cable holes before doing the rest.

The sensor has the biggest connector of the bunch so drill accordingly.

As you’ll notice this guide doesn’t follow the same order as the video; simply because we used the editing experience to improve the guide even more.

Got a feedback/suggestion? click here

Next

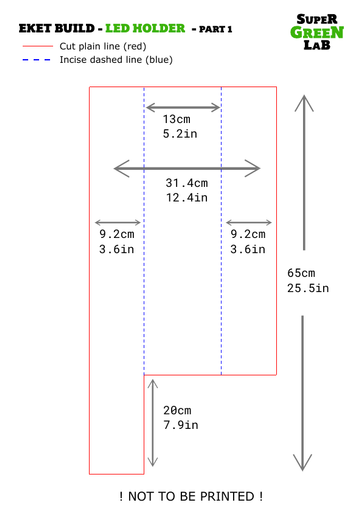

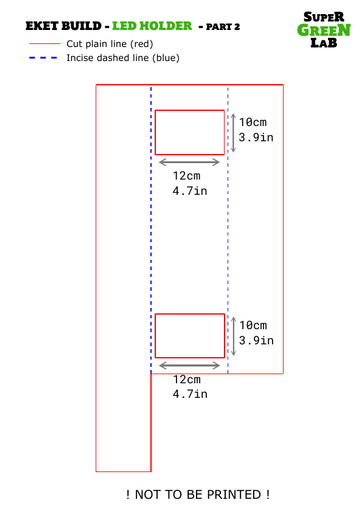

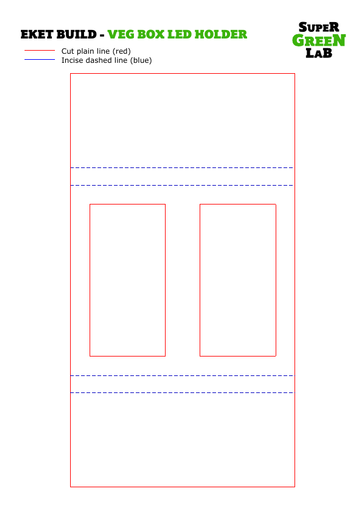

HOW TO MAKE CARDBOARD VERTICAL LED HOLDERS

This is actually one of the most important part of this build, the main problem being to be able to place the led panels diagonally in the box, so the plant has more room to grow.

Another advantage of this way of doing, is that the cardboard structure exposes the back of the panels inside the cardboard tubes, instead of directly in the box, which helps evacuating hot air directly to the top of the box, without spreading to the rest of the box.
